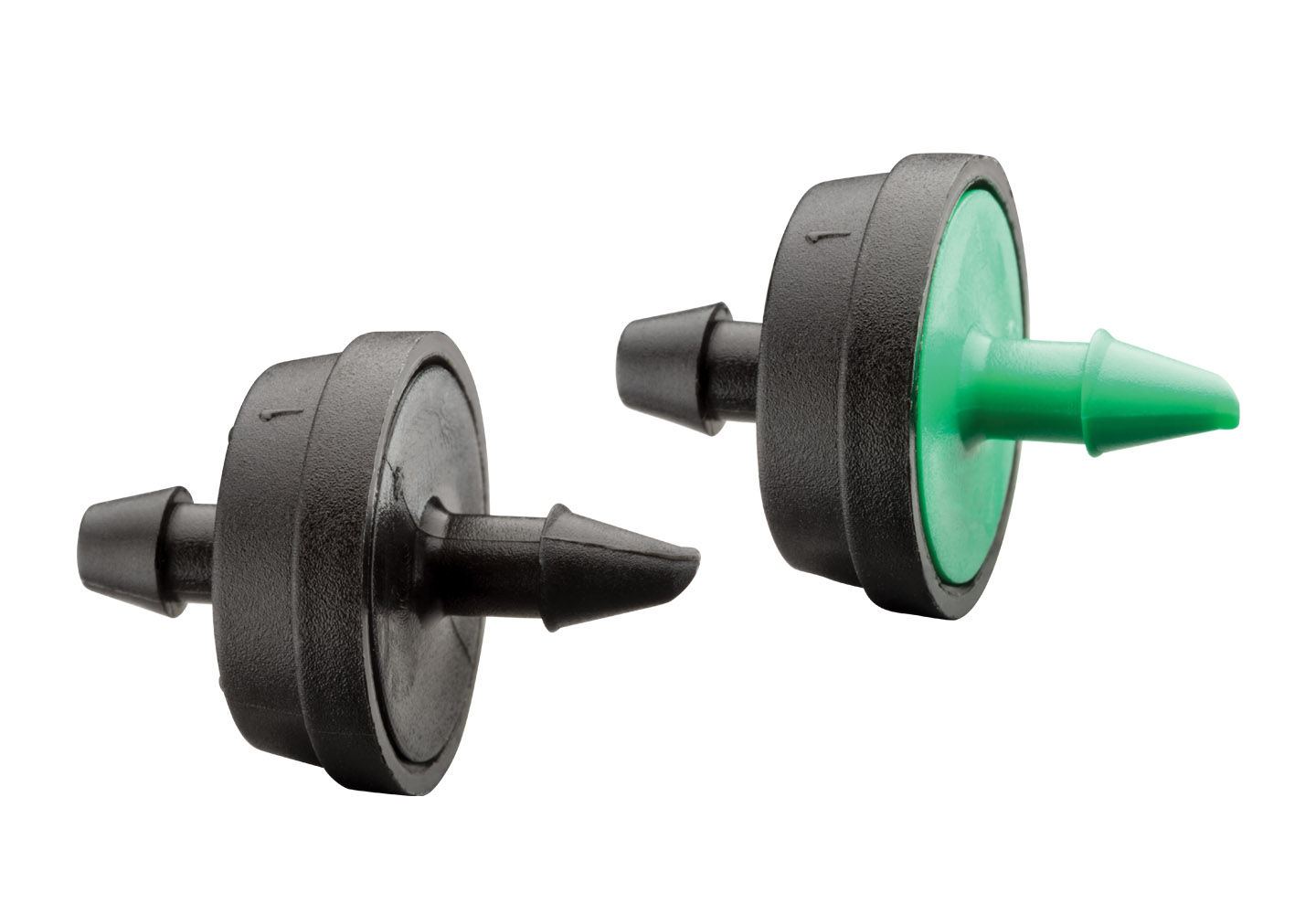

Pressure Regulating Spot Watering Emitters
Unique spot watering dripper features a built-in check valve to prevent wasteful water drainage on slopes. This pressure-compensating emitter provides a 1 or 2 gallon-per-hour flow rate. Ideal for watering root zones of gardens, landscape plants, shrubs and small bushes.
Rain Bird's pressure-compensating design ensures all plants receive the desired watering rate regardless of their position along the distribution tubing run. Uniform flow is delivered throughout a wide pressure range from 15 to 50 PSI. Self-piercing barb allows for direct insertion into the side of 1/2" or larger drip irrigation tubing, or in-line use with 1/4" tubing for positioning near individual plants.
Emitters are color-coded for easy identification when setting up or repairing your system: black (1 GPH) and green (2 GPH).
Videos
Features
- Pressure-compensating to deliver same uniform flow rate from beginning to end of tubing runs
- Prevents wasteful drainage on slopes
- 1 or 2 GPH flow rate
- Slow watering rate allows soil to absorb water more completely in the root zones of plants
- Self-piercing design; use in-line with 1/4" Drip tubing or insert into 1/2" or larger Drip tubing
- Large water passages and self-flushing action help prevent clogging
Using Spot Watering Emitters with 1/4" Tubing Stakes:
Tap off of 1/2" Tubing with Spot Watering Emitters and 1/4" Tubing. The 1/4" tubing can be held in place with 1/4" Tubing Stakes. Place bug guard (attached to 1/4" Tubing Stake) at end to prevent bugs and debris from clogging the tubing.
Tip: For trees, place Spot Watering Emitter 2/3 of the way between tree trunk and outside of canopy. Larger trees require more than one emitter, equally spaced around trunk.
Specs
- Constructed of highly durable UV and chemical-resistant materials to assure long life
- Working range: 15 to 50 PSI
