1800 Series Pressure Regulated (PRS) Spray Sprinkler with HE-VAN Nozzles
Maximum Water Savings
Chosen for its reliability, heavy-duty materials, and versatility, the 1800 Series offers a broad selection of pop-up heights and nozzle combinations for watering shrubs, small lawns, and irregularly shaped planting areas.
All models feature Rain Bird's patented pop-up mechanism with heavy-duty stainless-steel spring for dependable out-of-sight retraction, plus an exclusive co-molded wiper seal for unmatched resistance to grit, pressure, and extreme environments.
The Perfect Pair for Pressure Regulation
Rain Bird’s pressure-regulating stem (PRS) saves up to a gallon of water per minute.
We offer perfectly paired combinations of PRS spray bodies and high-efficiency nozzles. Each pair is designed to work together to give you the best possible performance across your entire irrigation system — all while saving water.
Videos
Features

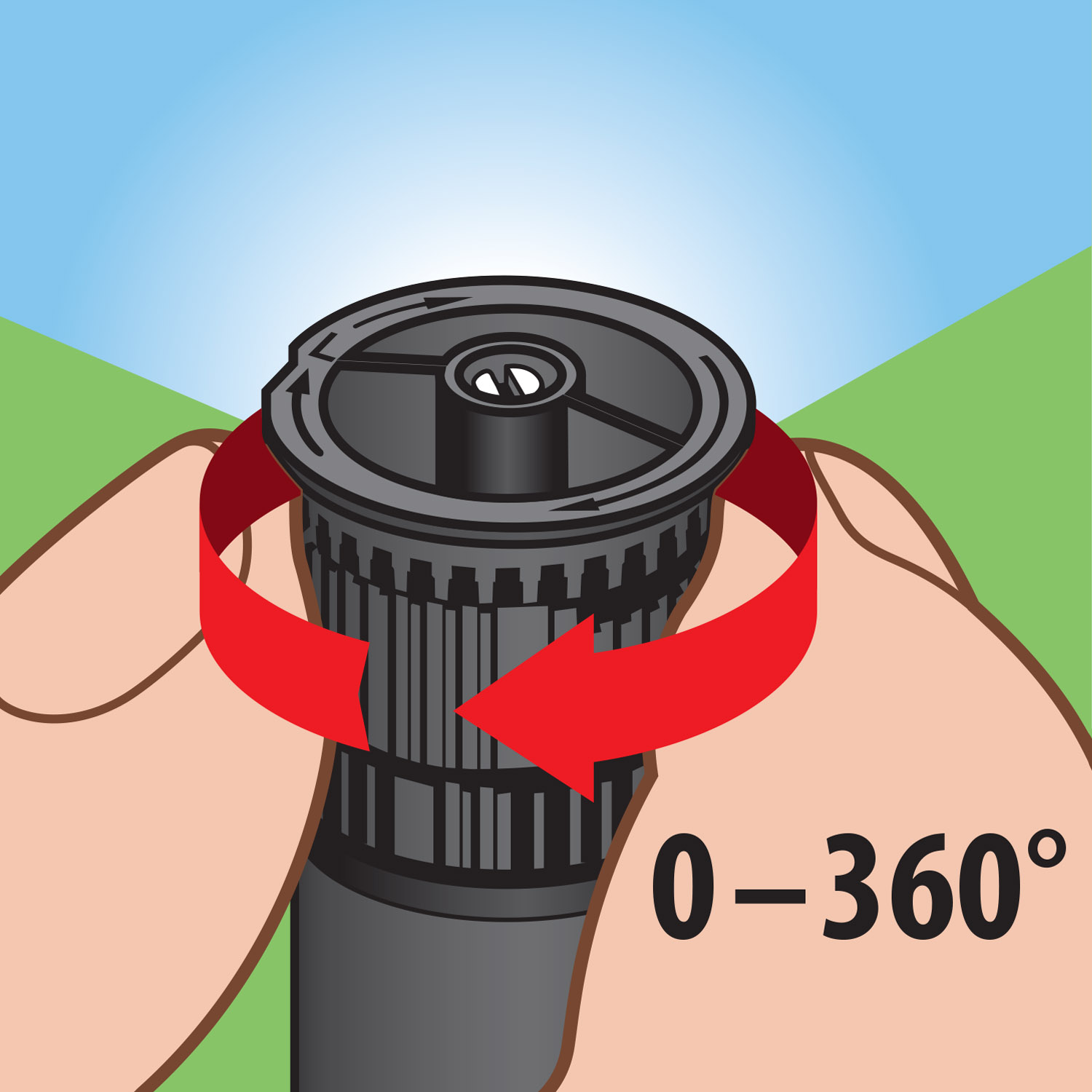

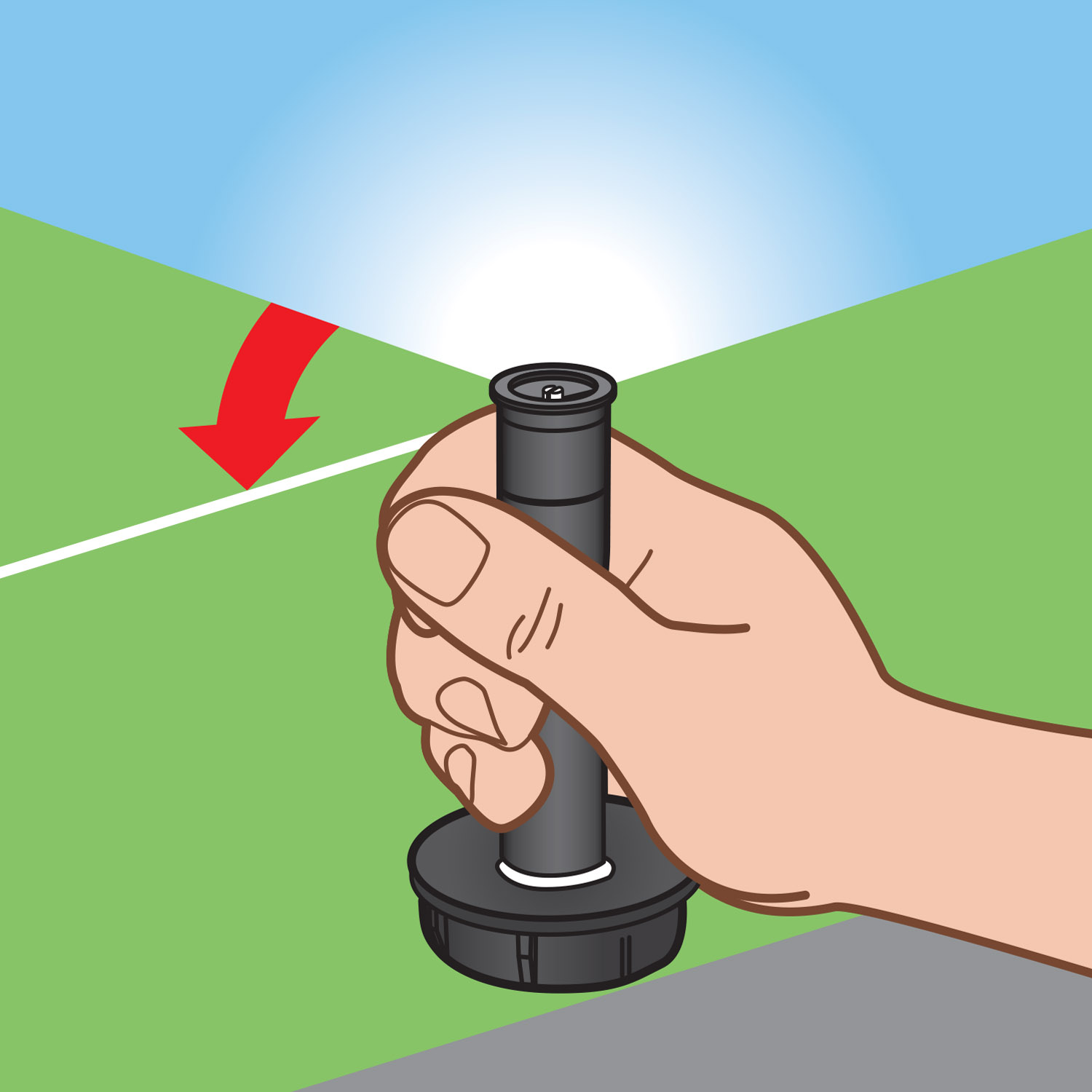

How to Adjust Pattern and Distance
All 1800s
- Co-molded wiper seal provides unmatched resistance to grit, pressure and the environment
- Constructed of time-proven UV-resistant plastic and corrosion-resistant stainless steel parts, ensuring long product life
- Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
- Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
1800 PRS-30
- All Rain Bird pressure regulating spray bodies are WaterSense certified by ICC-ES
- PATENTED PRS pressure regulator built into stem. No parts to be installed at the site. Saves time and money
- Maintains constant outlet pressure at 30 psi (2.1 bar) at varying inlet pressures regardless of nozzles used
- 30 psi is recommended for optimal spray nozzle performance
Pressure Regulated Sprays with HE-VAN Nozzles
- Water saving efficiency plus full 0° - 360° adjustability
- Defined streams produce larger, wind-resistant drops that cover evenly in any pattern
Specs
The 1800 Series accepts all Rain Bird spray nozzles.
- Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m³/h; 0.36 l/m) otherwise
Operating Range
- Spacing: 12 to 15 feet (3.6 to 4.6 m)*
- Pressure: 15 to 30 PSI (1.0 to 2.1 bar)
*2.5 to 15 feet with standard Rain Bird Spray Head Nozzles (SQ, U-Series, HE-VAN); 8 to 24 feet with Rain Bird Rotary Nozzles
Dimensions
- 1/2" (15/21) NPT female threaded inlet
- Exposed surface diameter: 2 1/4" (5.7 cm)
- Models and height:
- All 2" spray bodies: 4" (10.2 cm) body height; 2" pop-up height (5.1 cm)
- All 4" spray bodies: 6" (15.2 cm) body height; 4" pop-up height (10.2 cm)
